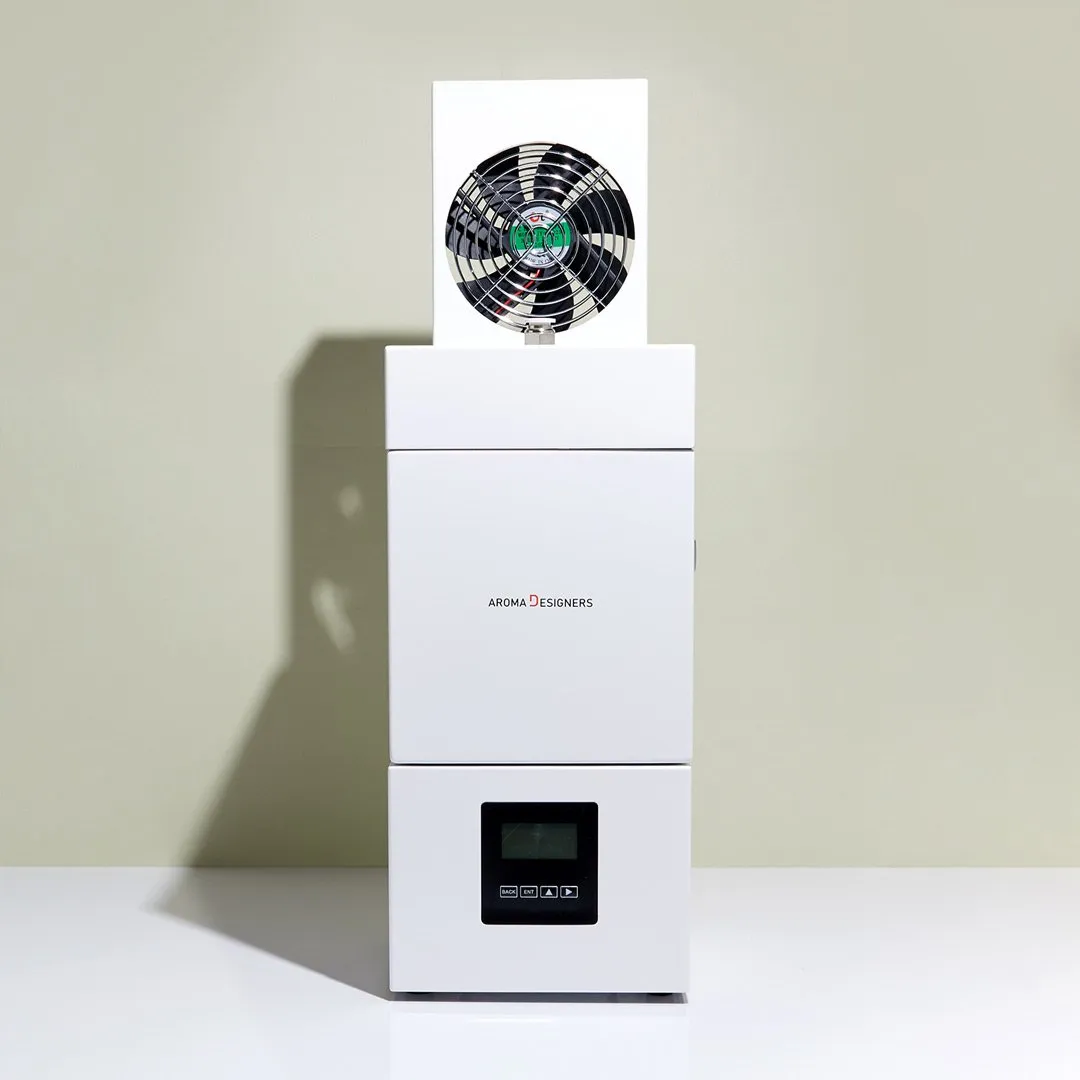

L50 HVAC Scent Diffuser
This scent diffuser is a purpose-specific cold air diffuser. This particular model uses a projector-type built-in fan that pushes the aroma particles across large open areas. L50 is ideal for large open spaces up to 5000 sq. ft., suitable for cases where HVAC connection is not feasible.
Coverage and Application:
This is a waterless type aroma diffuser for large open spaces up to 5,000 sq. ft. Typical commercial applications are large retail spaces, hotel lobbies, gyms, waiting areas etc. Most of our clients opt-in for this model when HVAC connection is not feasible and need to cover large areas.
This model works particularly well as a standalone unit, but it’s also has HVAC capabilties. Fully programmable 24/7, four different programs per day with custom level intensity settings down to minutes and seconds.
Waterless diffusers (also known as cold air technology) transform essential oil into nano-particles without any heating which preserves the integrity of the scent. Unlike aerosols, there is no residue or messy canisters.
Cost Savings
This is the latest technology in scenting and total cost of ownership is less compared to burning candles or using multiple aerosols. The initial investment in this unit typically is offset by the cost-effective technology within months, not to mention the difference in quality of scents.
L50 HVAC Scent Diffuser Specs:
- H: 14.9” W: 6.7” D: 6.7”
- HVAC Capable
- Standalone
- Wall-mounted
- Custom programmable
- Bluetooth connection via Aroma Designers Mobile App
- Projector Built-in Fan

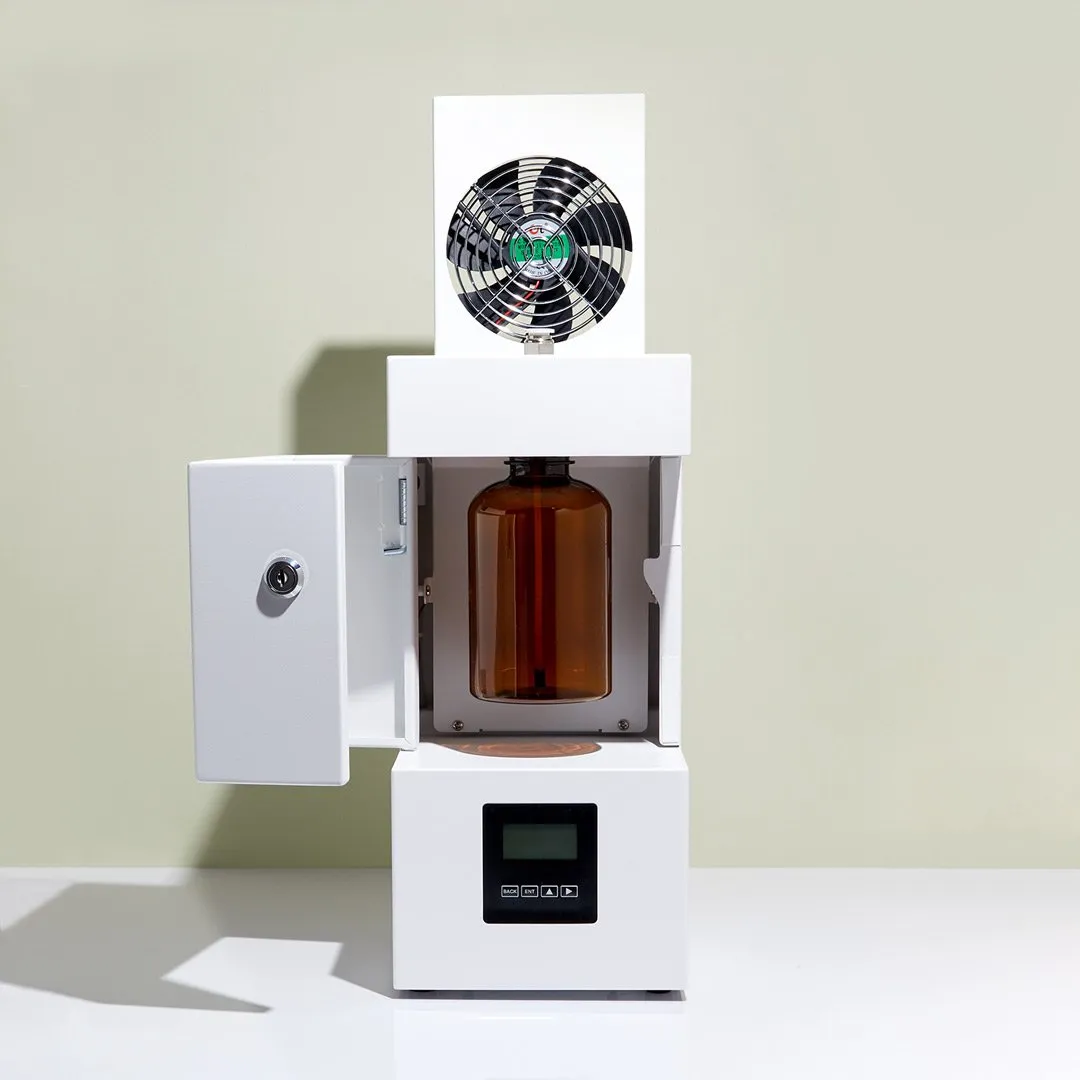

- 500ml Bottle Capacity
Scent Machine Bluetooth Setup
A step-by-step how-to guide about connecting the Mobile App to control the scent machine.
Step 1
Download the Aroma Designers App
Step 2
Install the app on your mobile
Bluetooth Connection Setup
Step 3
Follow the instructions from the video
Quick Start and Programming
Connecting the scent machine to HVAC

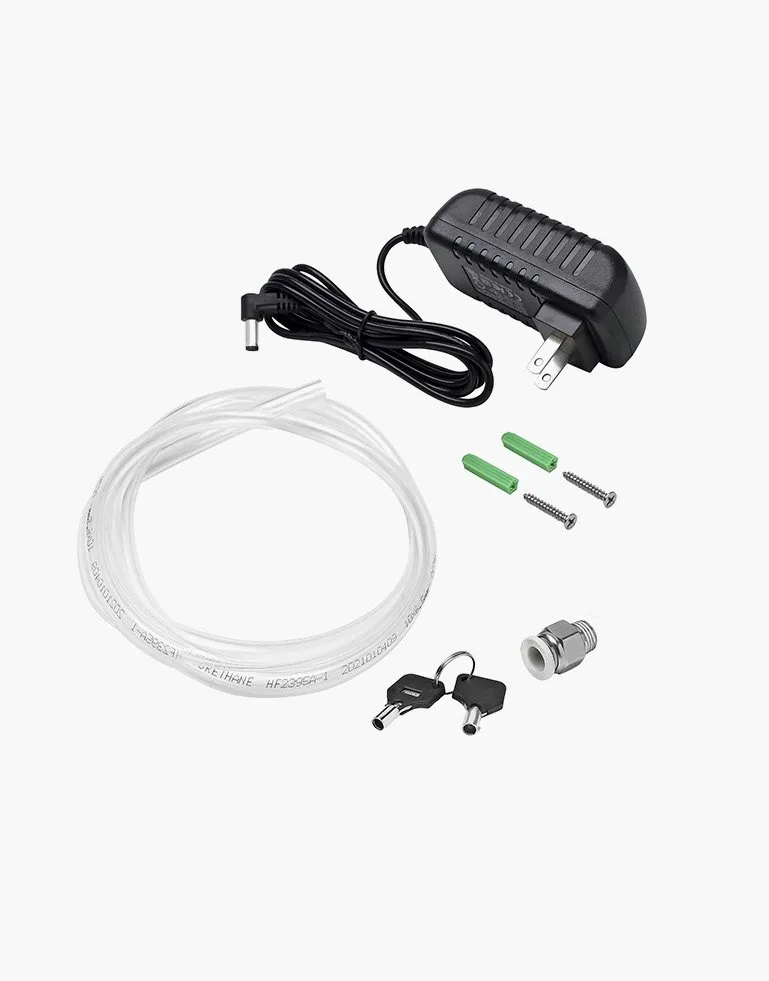

All scent machine models starting with M and L in the lineup are in fact HVAC capable. Each HVAC scent diffuser comes with a metal push-in fitting that screws into the machine and a plastic tube that connects the diffuser to the HVAC air duct.
Step 1
In order for the aroma mist to carry through the air duct, the AC must be operating or the blower fan must be turned on. If the AC (or fan) is off, the aroma mist will stay in the air duct and won’t reach the intended space. If the diffuser is operating for a prolonged period of time with the AC fan being off there will be unwanted scent buildup in air ducts and could cause diffuser or air handler damage.
Step 2
HVAC setup typically requires intensity levels 10% to 15% higher compared to standalone diffuser setup. Air duct passage creates an additional volume of space through which the aroma must travel and some capacity is lost due to the extended volume of space. With a standalone setup, the aroma covers a smaller volume of space and has a slower transit time.
Step 3
Installing the air diffuser requires adequate space to accommodate your aroma diffuser and must be close to the air ducts. The ideal placement of the diffuser tube opening is after the air handler and before the first air register (please refer to the diagram above). Please ensure the air duct opening is further away from the air handler body to prevent possible interference.
Step 4
The plastic tube that connects the diffuser with the air duct should be kept as short as possible and at the near-vertical pitch. Avoid ‘sagging’ formations in the tube as this could cause oil accumulation in the lower part of the tube and possibly damage your diffuser.
Step 5
The diffuser plastic tube entering the air duct should be approximately three to four inches inside the duct and pitched at about 10% downward angle just to ease the aroma flow.
Step 6
Ensure proper insulation of the opening by using aluminum tape and secure the plastic tube to one of the hard areas to minimize any tube movement.
Step 7
The placement of the diffuser should be in a dry, clean, moist free environment nearby a proper 110V power outlet.
HVAC Scent Diffuser Installation Video
Scent Diffusers
Yes, this diffuser operates from 100 – 240 V, the plug is for US (110) receptacles. For non-US receptacles, you would need to procure an adapter from the US to your country-specific plug type.
We work with many types of businesses and can recommend scenting solutions for your type of business based on what has worked well for similar clients e.g. pet care, medical offices, hotels, retail stores, etc. Should you need a proprietary (customer-specific) scent aroma for your business we can help you design your unique brand signature scent aroma.
Currently, we offer business diffuser leasing and fragrance oil refills for the Miami FL area only. As part of the B2B program, you will receive regular fragrance oil refills and maintenance by our trained technicians. Please contact us for a worry-free consultation.
We offer several types of commercial aroma diffusers, please contacts us for an obligation-free consultation. We would be more than happy to discuss the aroma needs for your business, we can also tailor a solution that fits your needs and budget.
With proper usage and maintenance, the expected useful life of your aroma diffuser is around four to five years. This estimate is bases on the manufacturer’s pump lifecycle expectancy of 10,000 hours and unit working seven days a week, twelve hours a day at a medium intensity level. Aroma Designers cannot independently verify or guarantee the above-mentioned estimate, this is based on information published by the manufacturer.
The consumption of fragrance oil depends on your diffuser model, intensity level, hours of operation per day and days per week. As a general principle for our residential diffuser models, at a medium intensity level, working seven days a week from 8:00AM to 20:00PM the consumption of oil is approximately 100ml per month for C5, 200ml for M10, 500ml for M30/L50 and 1000ml for L150. This is just an estimate and the actual consumption level can vary based on your diffuser and program settings.
Scent Diffusers may be returned up to 14 days of the date of product delivery. The customer is responsible for return shipping costs and applicable shipping insurance. The scent diffuser must be unused and in its original packaging with all parts, accessories and documentation. Scent Diffusers must be packed in a proper shipping box; a scent diffuser box is not considered a shipping box.
Scent Diffusers that have been run with oil are deemed used and not eligible for return. Scent Diffusers that have been altered, modified, or damaged by the customer are not eligible for return.
Aroma Designers is not responsible for lost items or damages caused by the carrier. We strongly recommend securing shipping insurance and providing us with a tracking number as part of the return process.
Refunds for returns conforming to the above-mentioned policy are typically issued within five business days from the product acceptance by Aroma Designers. All return units are inspected to confirm unused conditions prior to issuing any refunds.
Final Sale (i.e., ON SALE) items are not eligible for a return.
Exchanges typically are processed within five business days if all applicable exchange information is provided to Aroma Designers.
Car diffusers, S4, C5 – 90 days from the day of delivery.
M10, M30, L50, L150 – 12 months from the day of delivery
The warranty registration form can be filled here. If the diffuser malfunctions due to usage of non Aroma Designers fragrance oil, the customer will be responsible for repair cost and shipping costs.
